637. Average of Levels in Binary Tree

Easy

Given the root of a binary tree, return the average value of the nodes on each level in the form of an array. Answers within 10^-5 of the actual answer will be accepted.

Example 1

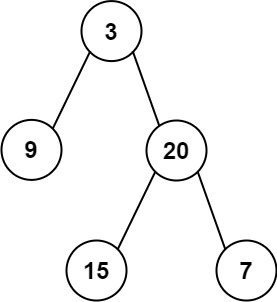

tree

Input: root = [3,9,20,null,null,15,7] Output: [3.00000,14.50000,11.00000] Explanation: The average value of nodes on level 0 is 3, on level 1 is 14.5, and on level 2 is 11. Hence return [3, 14.5, 11].

Example 2

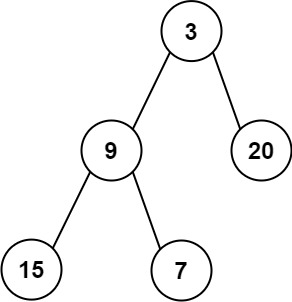

tree_2

Input: root = [3,9,20,15,7] Output: [3.00000,14.50000,11.00000]

Constraints

• The number of nodes in the tree is in the range [1, 10^4].

• -2^31 <= Node.val <= 2^31 - 1

Solution

My Solution

/**
 * Definition for a binary tree node.
 * type TreeNode struct {
 *     Val int
 *     Left *TreeNode
 *     Right *TreeNode
 * }
 */
func averageOfLevels(root *TreeNode) []float64 {
    resp := []float64{}

    queue := []*TreeNode{root}

    for len(queue) != 0 {
        size := len(queue)
        level := 0

        for i:=0; i < size; i++ {
            level += queue[i].Val

            if queue[i].Left != nil {
                queue = append(queue, queue[i].Left)
            }

            if queue[i].Right != nil {
                queue = append(queue, queue[i].Right)
            }
        }

        queue = queue[size:]
        resp = append(resp, float64(level)/float64(size))
    }

    return resp
}

Optimal Solution

The optimal solution uses level-order traversal (BFS) with two key improvements:

1. Using int64 to handle potential integer overflow

2. Pre-allocating the result slice for better performance

3. Efficient queue management with slice operations

func averageOfLevels(root *TreeNode) []float64 {
    if root == nil {
        return nil
    }

    // Pre-allocate result slice (optimization)
    result := make([]float64, 0, 10000) // max nodes = 10^4

    // Initialize queue with root
    queue := []*TreeNode{root}

    for len(queue) > 0 {
        levelSize := len(queue)
        levelSum := int64(0) // Use int64 to prevent overflow

        // Process current level
        for i := 0; i < levelSize; i++ {
            node := queue[0]
            queue = queue[1:] // More efficient queue management

            levelSum += int64(node.Val)

            // Add children to queue
            if node.Left != nil {
                queue = append(queue, node.Left)
            }
            if node.Right != nil {
                queue = append(queue, node.Right)
            }
        }

        // Calculate and store average
        avg := float64(levelSum) / float64(levelSize)
        result = append(result, avg)
    }

    return result
}

Approach Analysis

The solution employs two main techniques:

1. Level-Order Traversal (BFS):

   • Uses queue data structure

   • Processes nodes level by level

   • Maintains level boundaries

   • Ensures correct level averages

2. Efficient Memory Management:

   • Pre-allocated result slice

   • Optimized queue operations

   • Integer overflow prevention

   • Proper type conversions

Visualization of Both Approaches

Example Tree:
     3
   /   \
  9    20
      /  \
     15   7

BFS Traversal Steps:

Level 0: [3]
Queue: [3]
Sum: 3
Average: 3.0

Level 1: [9, 20]
Queue: [9, 20]
Sum: 29
Average: 14.5

Level 2: [15, 7]
Queue: [15, 7]
Sum: 22
Average: 11.0

Final Result: [3.0, 14.5, 11.0]

Complexity Analysis

Time Complexity:

• O(n) - visit each node exactly once

• O(1) - queue operations (append/remove)

• O(1) - average calculation per level

• Total: O(n) where n is number of nodes

Space Complexity:

• O(w) - queue size (w = max width of tree)

• O(h) - result array (h = height of tree)

• Total: O(w) where w is maximum width

Optimizations:

• Pre-allocated result slice

• int64 for overflow prevention

• Efficient queue management

• Early nil check

Why Solution Works

1. BFS Properties:

   • Natural level-by-level traversal

   • Maintains level boundaries

   • Complete level processing

   • Correct order guarantee

2. Memory Management:

   • Efficient slice operations

   • No extra data structures

   • Minimal memory overhead

   • Prevents integer overflow

3. Average Calculation:

   • Accurate level tracking

   • Proper type handling

   • Precision maintenance

   • Overflow prevention

When to Use

This approach is ideal when:

1. Need level-by-level tree processing

2. Require level-based calculations

3. Memory can handle tree width

4. Order within levels doesn't matter

Common applications:

• Level-order tree traversal

• Level statistics calculation

• Tree visualization

• Level-based tree operations

Common Patterns & Applications

1. BFS Pattern:

   • Queue-based traversal

   • Level-by-level processing

   • Width-first exploration

   • Level boundary tracking

2. Tree Level Processing:

   • Level statistics

   • Level modifications

   • Level grouping

   • Level comparisons

3. Average Calculations:

   • Numeric overflow handling

   • Floating-point precision

   • Group-based statistics

   • Level-based metrics

Interview Tips

1. Initial Clarification:

   • Confirm if we need to handle empty tree

   • Ask about precision requirements for averages

   • Clarify if the order of nodes within levels matters

   • Discuss memory constraints for large trees

2. Solution Walkthrough:

   • Start with BFS approach explanation

   • Mention queue usage for level tracking

   • Explain why BFS is better than DFS here

   • Discuss integer overflow prevention

3. Code Implementation Strategy:

   • Begin with basic queue structure

   • Add level size tracking

   • Implement sum calculation with overflow prevention

   • Handle edge cases last

4. Optimization Discussion:

   • Pre-allocate slices for better performance

   • Use int64 for sum to prevent overflow

   • Efficient queue management with slice operations

   • Early termination for nil root

5. Common Pitfalls to Avoid:

   • Integer overflow with large numbers

   • Not tracking level boundaries correctly

   • Inefficient queue operations

   • Missing edge cases

6. Follow-up Questions:

   • Q: "How would you handle a very wide tree?" A: Use level-by-level processing to limit memory usage

   • Q: "Can we solve this using DFS?" A: Yes, using a map to track level sums and counts

   • Q: "How to optimize memory usage?" A: Process nodes level by level, reuse queue space

   • Q: "What if we need exact decimal precision?" A: Use big.Float or similar for precise calculations

7. Edge Cases to Test:

   • Empty tree: return empty slice

   • Single node: return [node.Val]

   • Complete binary tree: maximum width

   • Skewed tree: minimal width

   • Large values: potential overflow

8. Code Quality Points:

   • Clear variable names (levelSize, levelSum)

   • Proper type conversions

   • Early return for nil

   • Clean queue management

   • Consistent error handling

9. Alternative Approaches:

   • DFS with level tracking

   • Iterative vs recursive

   • Array-based complete tree

   • Morris traversal variation

10. Performance Analysis:

    • Time: O(n) - visit each node once

    • Space: O(w) - w is max tree width

    • Memory-time tradeoffs

    • Optimization possibilities

result
